Find the right match
Highlights
Composer Series
350 & 450
Precision Series
350 & 450

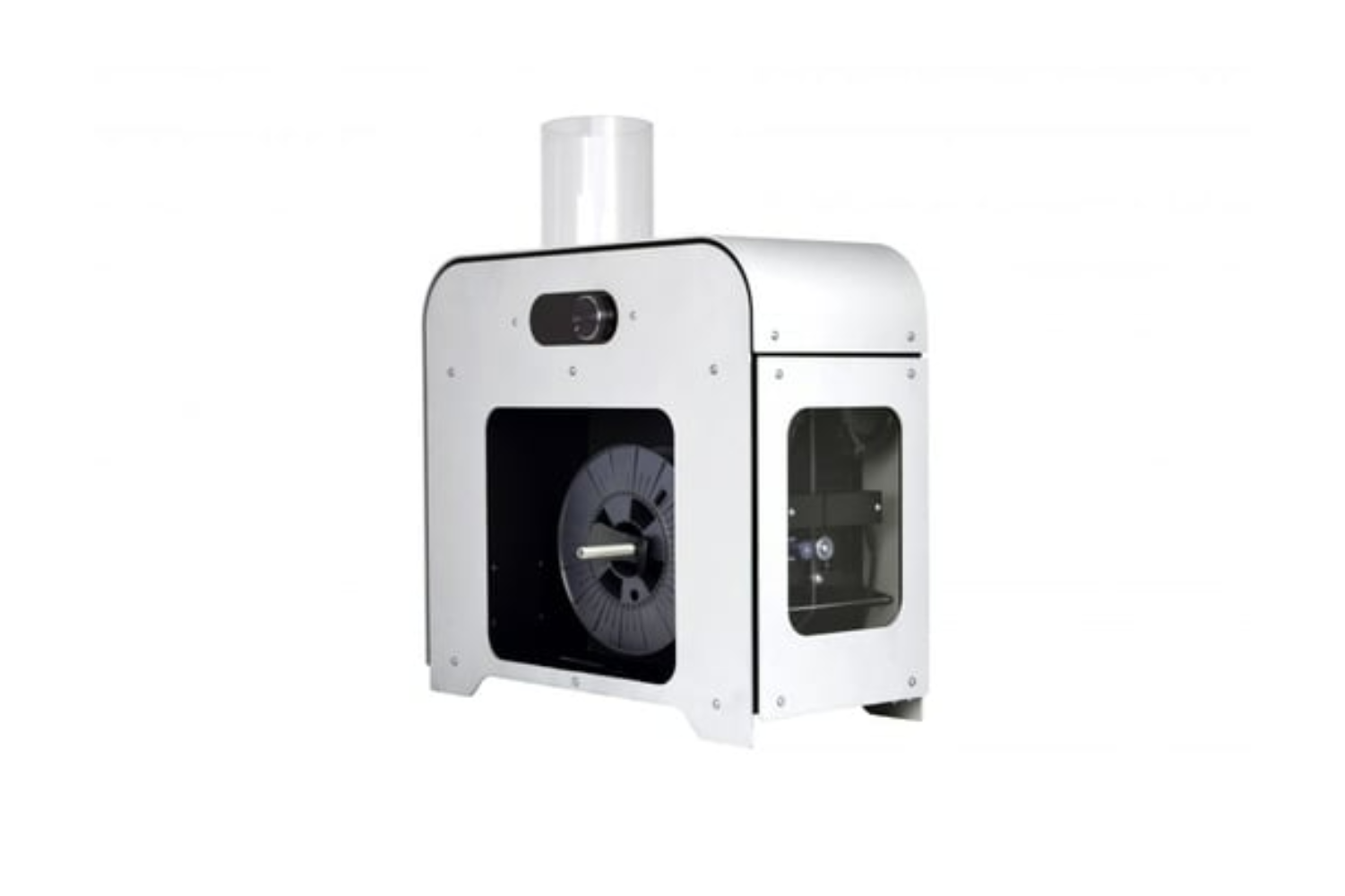

Composer Series
Designed for experimenting and compounding.
- Silver powder coated aluminum
- Ceramic heating to 350°C or 450°C
- Swappable extruder design
- 4 controllable heating zones
- Material mixing screw
- USB connectivity

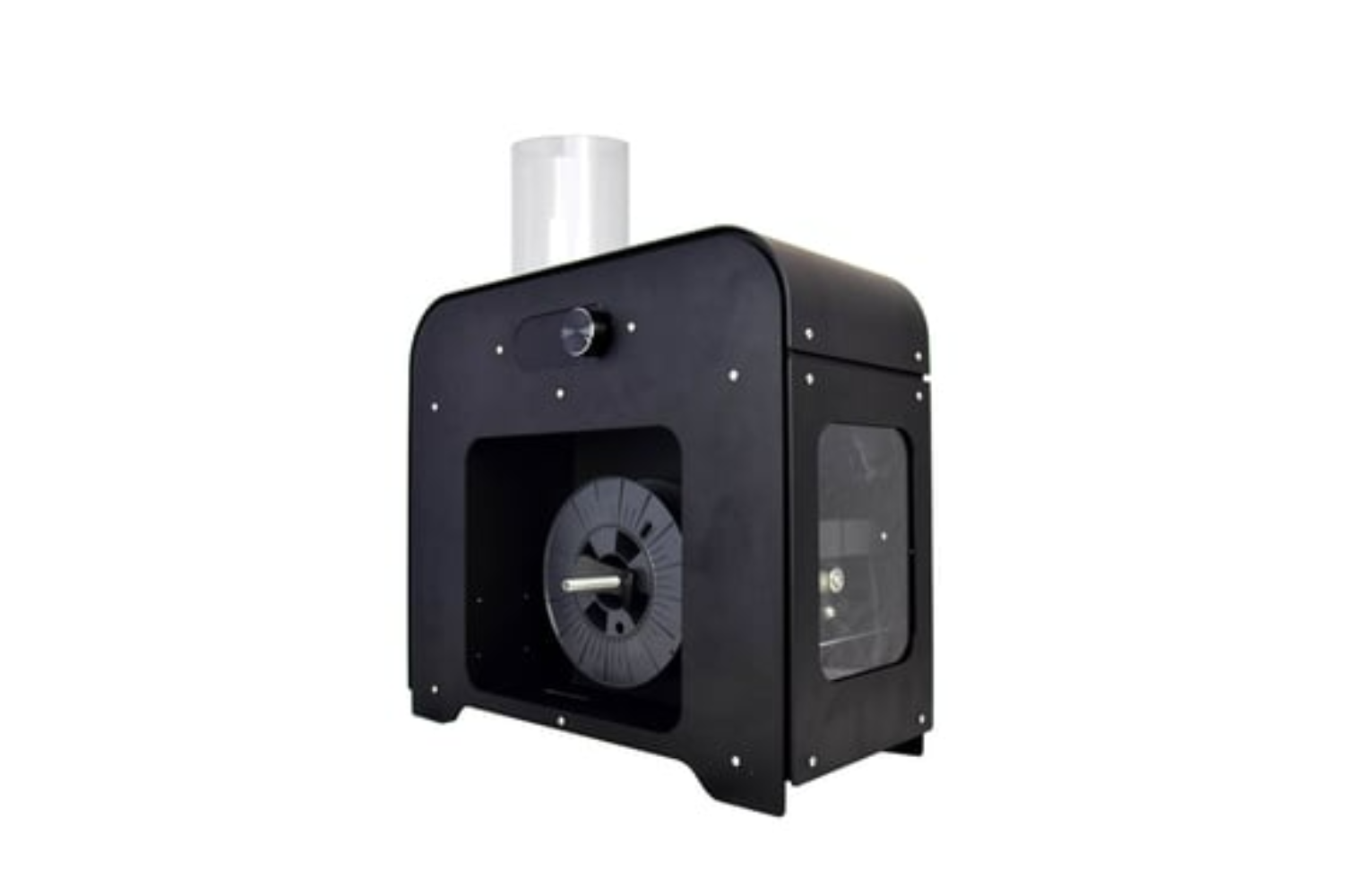

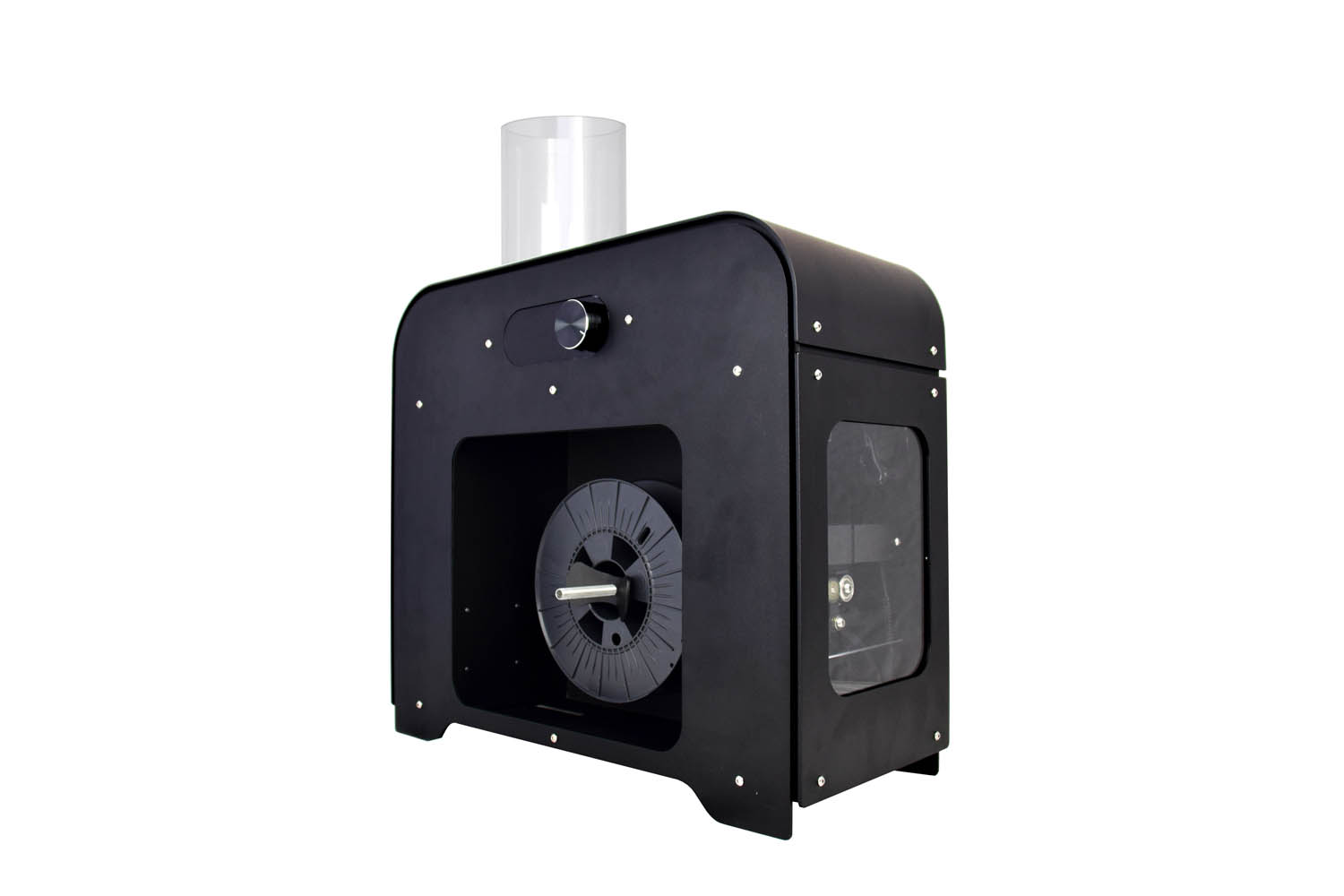

Precision Series
Combining superior performance with precision.
- Black powder coated aluminum
- Ceramic heating to 350°C or 450°C
- Swappable extruder design
- 4 controllable heating zones
- High-flow screw
- USB connectivity
Composer Series
350 & 450
Composer Series
450 (only)
Presets – Professional Materials
PEEK, PC, PS
Professional Materials Tested
PEKK, PAEK, PEI, PSU, PES, PTFE, PVDF
Material Updates
Presets added regularly
New materials tested frequently
Material Compatibility Requests
To test your materials, please contact sales.
X
Contact Sales
Precision Series
350 & 450
Precision Series
450 (only)
Presets – Professional Materials
PEEK, PC, PS
Professional Materials Tested
PEKK, PAEK, PEI, PSU, PES, PTFE, PVDF
Material Updates
Presets added regularly
New materials tested frequently
Material Compatibility Requests
To test your materials, please contact sales.
X
Contact Sales
Composer Series
Speed
0.7 kg PLA / hour *
RPM Range
2 – 15 rpm
Filament Diameter Range
0.5 – 3 mm (0.02 – 0.12 inches)
Optical Sensor Accuracy
43 microns (1.69 mils)
Nozzle Extruder
Diameter 4 mm (0.16 inches)
Replaceable
Precision Series
Speed
1 kg PLA / hour *
RPM Range
2 – 15 rpm
Filament Diameter Range
0.5 – 3 mm (0.02 – 0.12 inches)
Optical Sensor Accuracy
43 microns (1.69 mils)
Nozzle Extruder
Diameter 4 mm (0.16 inches)
Replaceable
* Achieved with PLA Natureworks 4043D (MFR, g/10 min = 6 at 210 °C/2.16 kg )
Composer and Precision Series
Firmware Updates
Free and regularly
Extrusion Data Analysis
Real-time
Connectivity
USB
Composer and Precision Series
Temperature Max.
Series 350 up to 350°C
Series 450 up to 450°C
Band Heater
Ceramic
Heating Zones
4
Independent Controllable
Yes
Composer and Precision Series
Screw/Barrel Alloy
High chromium and molybdenum steel alloy
Hardening Treatment
Nitrided
Compression
3 Stage
Swappable
Extruder design
Material Mixing Zone
Only composer series
Composer and Precision Series
Hopper Volume
2 liters
Spool Holders
1
Spool Size
Diameter 240 mm (9.4 inches)
Width 120 mm (4.7 inches)
Composer and Precision Series
Height
506 mm (19.2 inches)
Width
448 mm (17.6 inches)
Depth
216 mm (8.5 inches)
Weight (Extruder)
24.5 kg (54 pounds)
Weight (Extruder + Box)
27 kg (59.5 pounds)
Composer and Precision Series
Consumption Average
300 – 400 W
Consumption Max.
1300 W
Voltage
110 – 230 V
Hertz
50 – 60 Hz
Composer
350 (Silver)
€–5.350,00
ex. VAT
Composer
450 (Silver)
€–6.350,00
ex. VAT
Precision
350 (Black)
€–4.850,00
ex. VAT
Precision
450 (Black)
€–5.850,00
ex. VAT
Demo Videos
Watch the videos to learn the basics of making your own custom filament.
Explore Industries
Discover in which industries the NEXT extruder is making a difference.
